60X25MM, DC, 12V, SPLASH & DUST

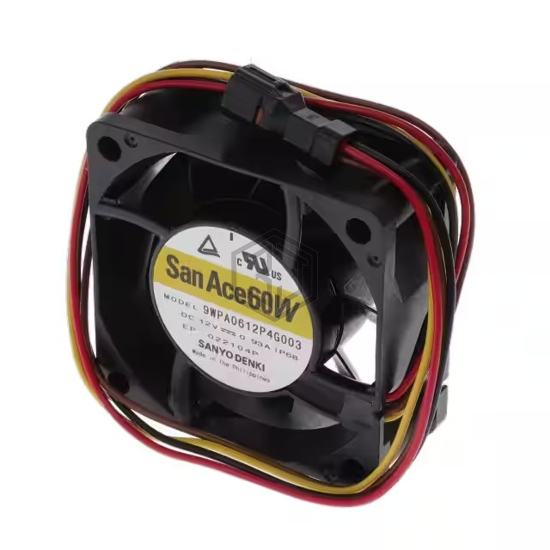

9WPA0612P4G003 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. 60X25MM, DC, 12V, SPLASH & DUST. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 60mm L x 60mm H, termination 4 Position Rectangular Connector.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 25.00mm |
| Air Flow | 15.3 CFM (0.428m³/min) |
| Static Pressure | 0.120 in H2O (29.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 22.0dB(A) |
| Power (Watts) | - |
| RPM | 3500 RPM |
| Termination | 4 Position Rectangular Connector |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | - |
| Weight | 0.243 lb (110.22 g) |
Submit your RFQ for 9WPA0612P4G003 and get a quote within 24 hours.
