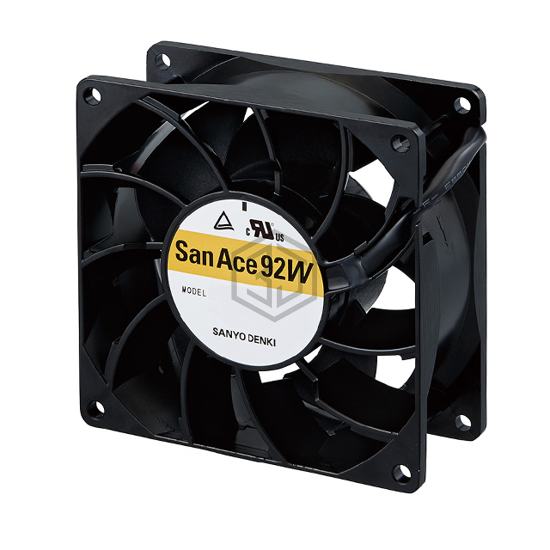

FAN 92X38MM 48VDC IP68 TACH/PWM
9WL0948P1F601 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 92X38MM 48VDC IP68 TACH/PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 48VDC, size / dimension Square - 92mm L x 92mm H, termination 4 Wire Leads.
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 38.00mm |
| Air Flow | 102.4 CFM (2.87m³/min) |
| Static Pressure | 1.050 in H2O (261.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 55.0dB(A) |
| Power (Watts) | 11.52 W |
| RPM | 7000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.661 lb (299.82 g) |
Submit your RFQ for 9WL0948P1F601 and get a quote within 24 hours.
