FAN 80X25MM 24VDC IP68 RBLS TACH

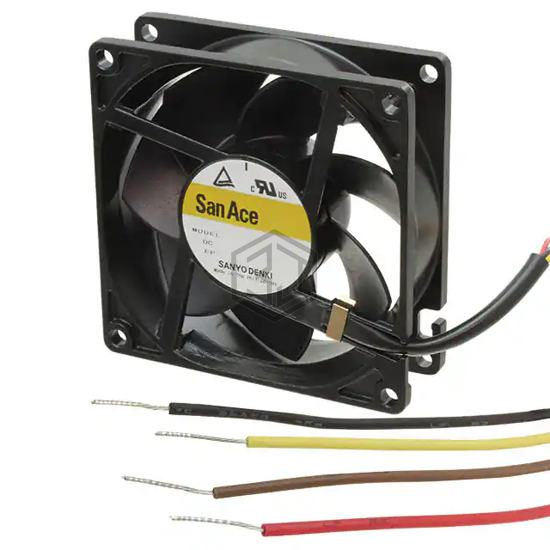

9WL0824P4J001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 80X25MM 24VDC IP68 RBLS TACH. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 80mm L x 80mm H, termination 4 Wire Leads.
In Stock: 8,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 25.00mm |
| Air Flow | 73.0 CFM (2.04m³/min) |
| Static Pressure | 0.710 in H2O (176.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 49.0dB(A) |
| Power (Watts) | 6.72 W |
| RPM | 7400 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.331 lb (150.14 g) |
Submit your RFQ for 9WL0824P4J001 and get a quote within 24 hours.
