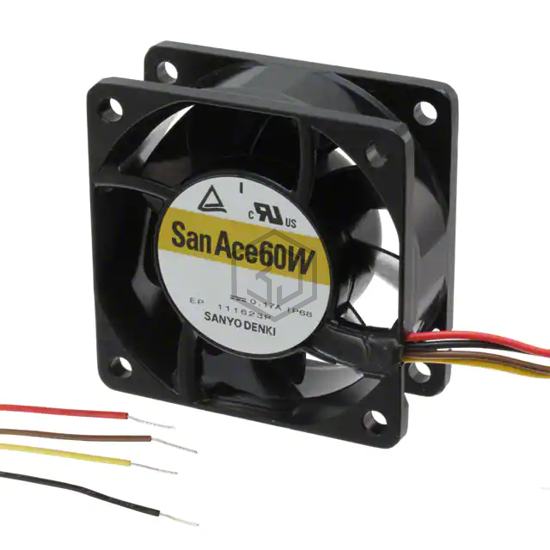

9WL0612P4J001 - Sanyo Denki America Inc. - DC Brushless Fans (BLDC)

9WL0612P4J001

Sanyo Denki America Inc.

FAN 60X25MM 12VDC IP68 RBLS

9WL0612P4J001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 60X25MM 12VDC IP68 RBLS. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 60mm L x 60mm H, termination 4 Wire Leads.

In Stock: 767

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 60mm L x 60mm H
Width25.00mm
Air Flow38.8 CFM (1.09m³/min)
Static Pressure0.730 in H2O (181.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesPWM Control, Speed Sensor (Tach)
Noise47.0dB(A)
Power (Watts)4.68 W
RPM8650 RPM
Termination4 Wire Leads
Ingress ProtectionIP68 - Dust Tight, Waterproof
Operating Temperature-4 ~ 158°F (-20 ~ 70°C)
Approval AgencyCSA, TUV, UL
Weight0.243 lb (110.22 g)

Frequently Asked Questions

9WL0612P4J001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 60X25MM 12VDC IP68 RBLS

The operating temperature range of 9WL0612P4J001 is -4 ~ 158°F (-20 ~ 70°C).

The supply voltage of 9WL0612P4J001 is 12VDC.

The size of 9WL0612P4J001 is Square - 60mm L x 60mm H.
