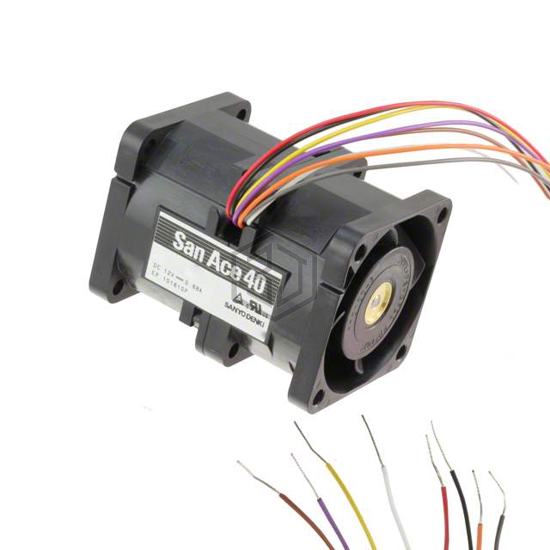

FAN 40X56MM 12VDC TACH,PWM
9CRB0412P5K001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 40X56MM 12VDC TACH,PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads per Fan.
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 56.00mm |
| Air Flow | 26.8 CFM (0.750m³/min) |
| Static Pressure | 2.930 in H2O (729.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, PWM Control, Speed Sensor (Tach) |
| Noise | 62.0dB(A) |
| Power (Watts) | 10.56 W |
| RPM | 19000 Front, 17000 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.222 lb (100.7 g) |
Submit your RFQ for 9CRB0412P5K001 and get a quote within 24 hours.
