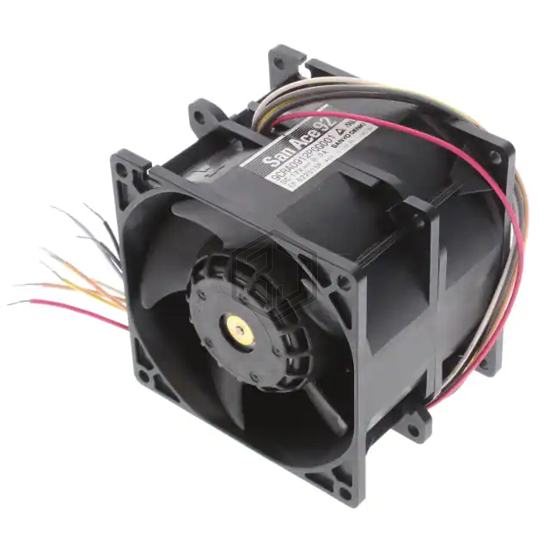

DC AXIAL FAN 92X92X76MM PWM
9CRA0912P0G001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. DC AXIAL FAN 92X92X76MM PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 92mm L x 92mm H, termination 4 Wire Leads per Fan.
In Stock: 4,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 76.00mm |
| Air Flow | 205.0 CFM (5.74m³/min) |
| Static Pressure | 6.630 in H2O (1651.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 81.0dB(A) |
| Power (Watts) | 108 W |
| RPM | 13300 Front, 12200 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 1.1 lbs (510.0 g) |
