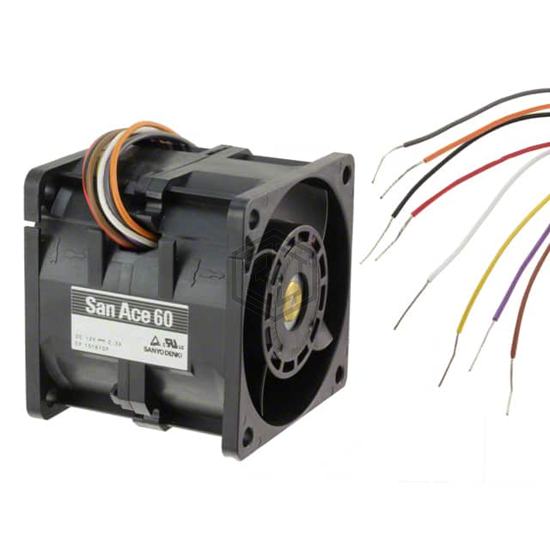

FAN 60X56MM 12VDC TACH,PWM
9CRA0612P6J001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 60X56MM 12VDC TACH,PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 60mm L x 60mm H, termination 3 Wire Leads per Fan.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 56.00mm |
| Air Flow | 74.1 CFM (2.07m³/min) |
| Static Pressure | 3.827 in H2O (953.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 70.0dB(A) |
| Power (Watts) | 27.6 W |
| RPM | 16800 Front, 14500 Rear |
| Termination | 3 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.441 lb (200.00 g) |
Submit your RFQ for 9CRA0612P6J001 and get a quote within 24 hours.
