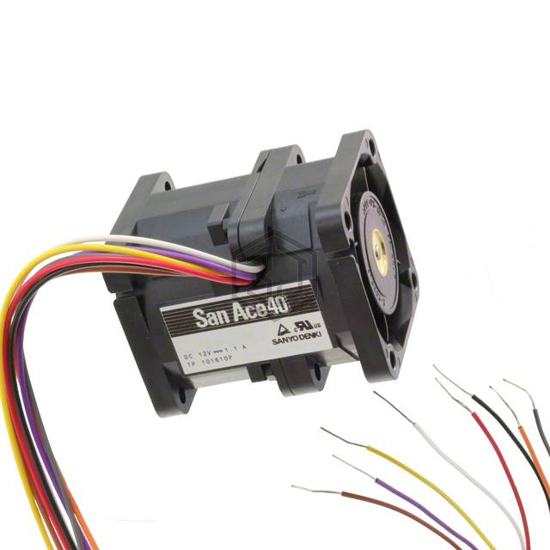

FAN 40X56MM 12VDC TACH,PWM
9CRA0412P5K03 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 40X56MM 12VDC TACH,PWM. Key specifications: operating temperature -4 ~ 140°F (-20 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads per Fan.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 56.00mm |
| Air Flow | 33.5 CFM (0.938m³/min) |
| Static Pressure | 2.610 in H2O (650.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, PWM Control, Speed Sensor (Tach) |
| Noise | 65.0dB(A) |
| Power (Watts) | 21.6 W |
| RPM | 17000 Front, 13000 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.199 lb (90.26 g) |
Submit your RFQ for 9CRA0412P5K03 and get a quote within 24 hours.
