FAN 172X150X102MM 48VDC

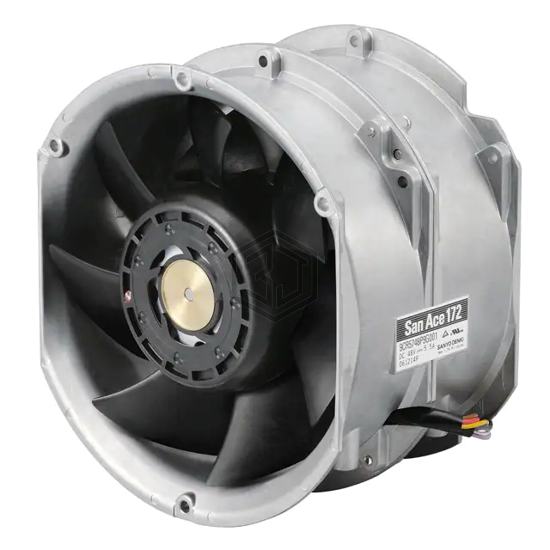

9CR5748P9G001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. FAN 172X150X102MM 48VDC. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 48VDC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 4 Wire Leads per Fan.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 102.0mm |
| Air Flow | 636.0 CFM (17.81m³/min) |
| Static Pressure | 5.620 in H2O (1400.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 83.0dB(A) |
| Power (Watts) | 264 W |
| RPM | 7300 Front, 6400 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 3.5 lbs (1.6 kg) |
Submit your RFQ for 9CR5748P9G001 and get a quote within 24 hours.
