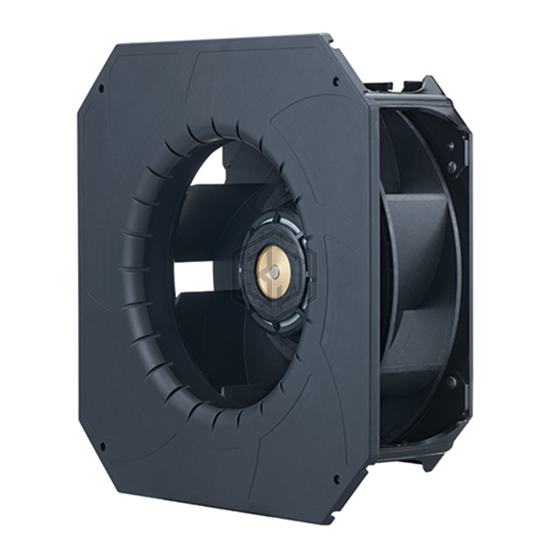

DC BLOWER 270X99MM PWM
9B1TP24P0H001 is a DC Brushless Fans (BLDC) manufactured by Sanyo Denki America Inc.. DC BLOWER 270X99MM PWM. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 270mm L x 270mm H, termination 4 Wire Leads.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 270mm L x 270mm H |
| Width | 99.00mm |
| Air Flow | 622.0 CFM (17.42m³/min) |
| Static Pressure | 2.130 in H2O (530.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 71.0dB(A) |
| Power (Watts) | 76.8 W |
| RPM | 3050 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 3.8 lbs (1.7 kg) |
Submit your RFQ for 9B1TP24P0H001 and get a quote within 24 hours.
