STEP-DOWN SWITCHING REGULATOR

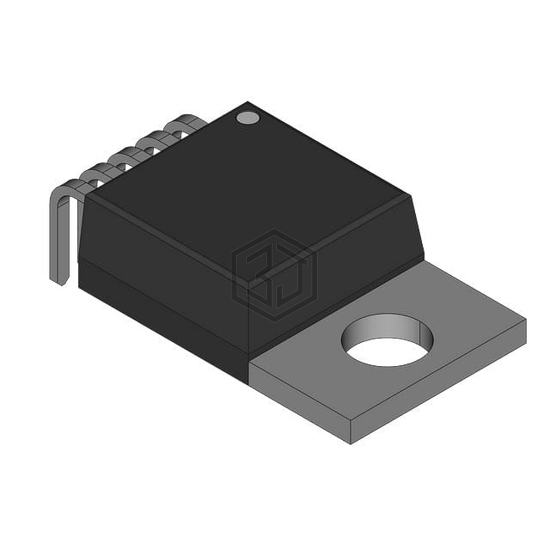

TN5D61A-HB11-E is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Sanyo. STEP-DOWN SWITCHING REGULATOR. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 85°C (TA), package / case TO-220-6 Full Pack, Formed Leads, current - output 5A.
In Stock: 3,800
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 30V |
| Voltage - Input (Max) | 48V |
| Voltage - Output (Min/Fixed) | 24V |
| Voltage - Output (Max) | - |
| Current - Output | 5A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F5I5H-HB |
TN5D61A-HB11-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2599T-12/NOPB | Texas Instruments | IC REG BUCK 12V 3A TO220-7 | 53% | View |
| LM2599T-5.0/NOPB | Texas Instruments | IC REG BUCK 5V 3A TO220-7 | 53% | View |
| LM2596T-5.0/NOPB | Texas Instruments | IC REG BUCK 5V 3A TO220-5 | 53% | View |
| LM2596T-5.0 | National Semiconductor | SWITCHING REG, VOLTAGE-MODE, 7.5 | 53% | View |
| LM2596T-3.3/NOPB | Texas Instruments | IC REG BUCK 3.3V 3A TO220-5 | 53% | View |
| LM2596T-3.3/LF03 | Texas Instruments | IC REG BUCK 3.3V 3A TO220-5 | 53% | View |
Submit your RFQ for TN5D61A-HB11-E and get a quote within 24 hours.
