STEP-DOWN SWITCHING REGULATOR

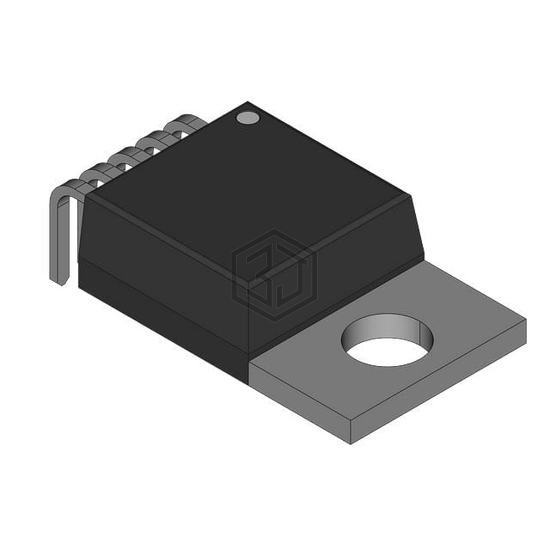

TN5D01A-HCC11-E is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Sanyo. STEP-DOWN SWITCHING REGULATOR. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 85°C (TA), package / case TO-220-5 Full Pack, Formed Leads, current - output 5A.
In Stock: 5,267
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | 4.9V |
| Current - Output | 5A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F5I5H-HCC |
TN5D01A-HCC11-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM1501AGT-ADJ | TAEJIN | IC REG BUCK ADJ 5A TO220-5L | 56% | View |
| BD9702T-V5 | Rohm Semiconductor | IC REG BUCK ADJ 3A TO220FP-5 | 50% | View |
| BD9702T | Rohm Semiconductor | IC REG BUCK ADJ 3A TO220FP-5 | 50% | View |
| BD9702CP-V5E2 | Rohm Semiconductor | IC REG BUCK ADJ 3A TO220CP-V5 | 50% | View |
Submit your RFQ for TN5D01A-HCC11-E and get a quote within 24 hours.
