P-CHANNEL MOSFET

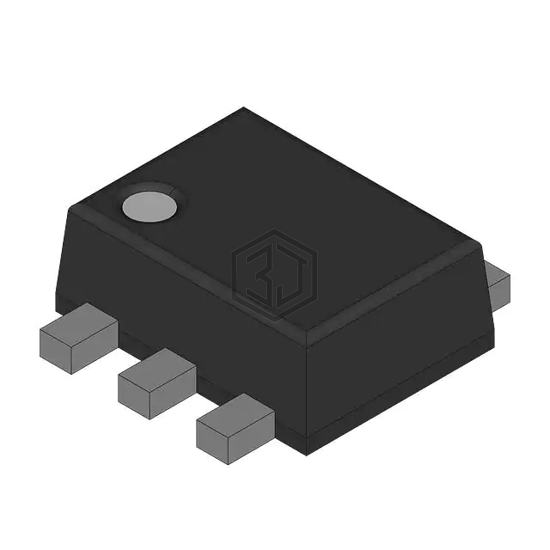

SCH1337-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.
In Stock: 715,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 3.9 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 172 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SCH |
| Package / Case | SOT-563, SOT-666 |
Submit your RFQ for SCH1337-TL-H and get a quote within 24 hours.
