MOSFET N-CH 30V 9A/44A 5DFN

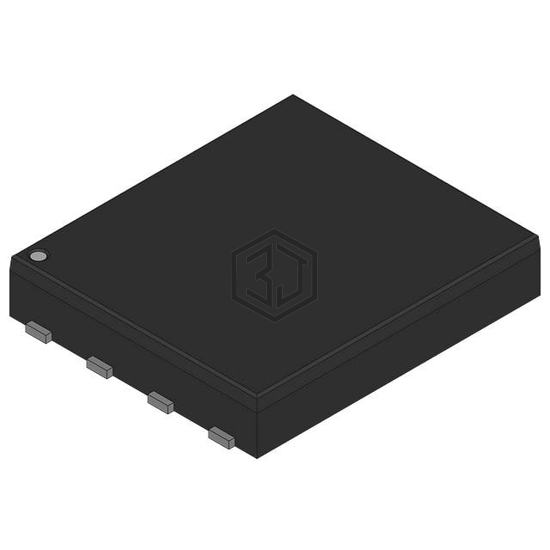

NTMFS4926NET1G is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. MOSFET N-CH 30V 9A/44A 5DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, 5 Leads.
In Stock: 25,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1004 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 920mW (Ta), 21.6W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
Submit your RFQ for NTMFS4926NET1G and get a quote within 24 hours.
