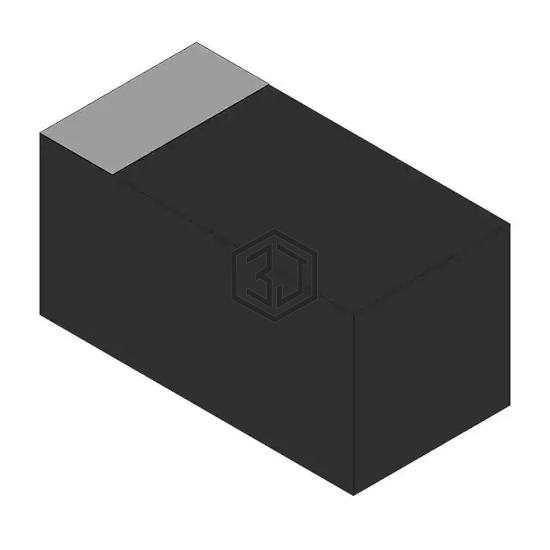

NSR05F30NRT5G
SCHOTTKY BARRIER DIODE
NSR05F30NRT5G is a Diodes - Rectifiers - Single manufactured by Sanyo. SCHOTTKY BARRIER DIODE. Key specifications: mounting type Surface Mount, package / case 0402 (1006 Metric).
In Stock: 40,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 75 µA @ 30 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
NSR05F30NRT5G is a Diodes - Rectifiers - Single manufactured by Sanyo. SCHOTTKY BARRIER DIODE
The mounting type of NSR05F30NRT5G is Surface Mount.
The package type of NSR05F30NRT5G is 0402 (1006 Metric).
Yes, NSR05F30NRT5G is listed as Obsolete. Consider requesting a quote for alternative parts.
