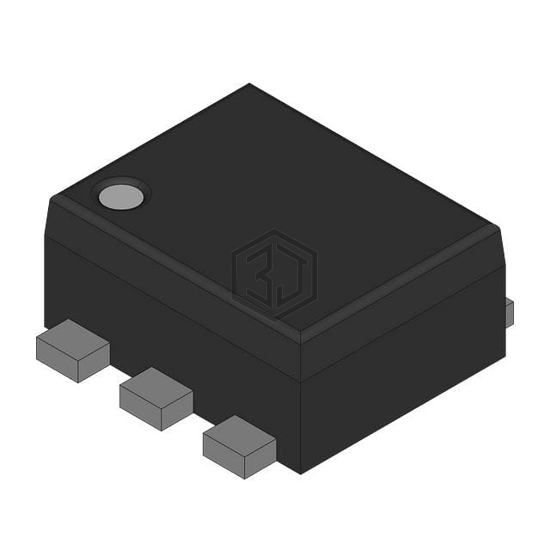

MOSFET P-CH 12V 5A SC88FL/ MCPH6
MCH6336-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. MOSFET P-CH 12V 5A SC88FL/ MCPH6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.
In Stock: 2,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.9 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88FL/ MCPH6 |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for MCH6336-TL-E and get a quote within 24 hours.
