MOSFET P-CH 12V 3.5A SC70

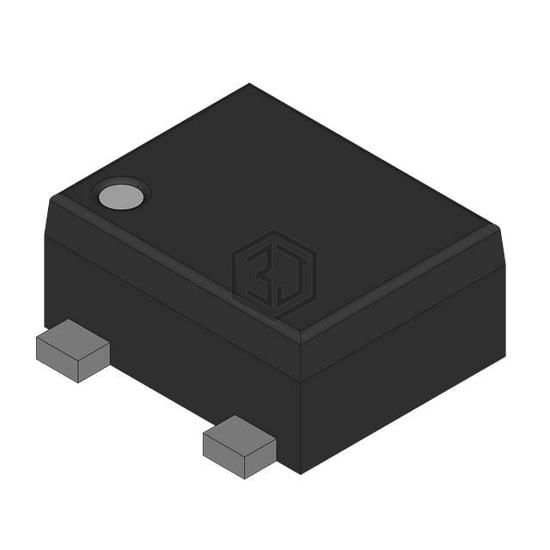

MCH3383-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by Sanyo. MOSFET P-CH 12V 3.5A SC70. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Lead.
In Stock: 46,676
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 69mOhm @ 1.5A, 2.5V |
| Vgs(th) (Max) @ Id | 800mV @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 2.5 V |
| Vgs (Max) | ±5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1010 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70FL/MCPH3 |
| Package / Case | 3-SMD, Flat Lead |
Submit your RFQ for MCH3383-TL-H and get a quote within 24 hours.
