H-BRIDGE DRIVER IC

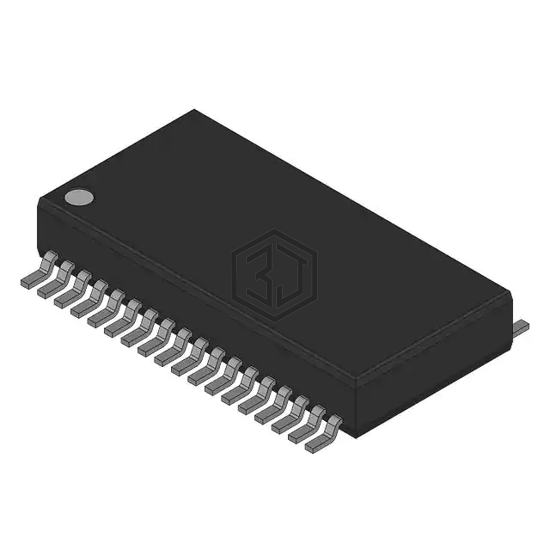

LV8761V-MPB-E is a PMIC - Motor Drivers, Controllers manufactured by Sanyo. H-BRIDGE DRIVER IC. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 3V ~ 5.5V, package / case 36-LSOP (0.220", 5.60mm Width) Exposed Pad.
In Stock: 1,802
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 9V ~ 35V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-LSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOPJ |
LV8761V-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB11651H-TLM-E | Sanyo | PWM INPUT FORWARD/REVERSE MOTOR | 98% | View |
| TB67B001FTG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 36VQFN | 93% | View |
| TB62215AFTG,C8,EL | Toshiba Semiconductor and Storage | IC MTRDRV BIPLR 4.75-5.25V 48QFN | 90% | View |
| TB67S145FTG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER UNIPOLAR 48WQFN | 90% | View |
| TB62215AFG,C8,EL | Toshiba Semiconductor and Storage | STEPPER MOTOR DRIVER, 40V/2.0A, | 90% | View |
| A5950KLPTR-T | Allegro MicroSystems | IC MOTOR DRIVER 5.5V-40V 16TSSOP | 81% | View |
Submit your RFQ for LV8761V-MPB-E and get a quote within 24 hours.
