STEP-DOWN SWITCHING REGULATOR

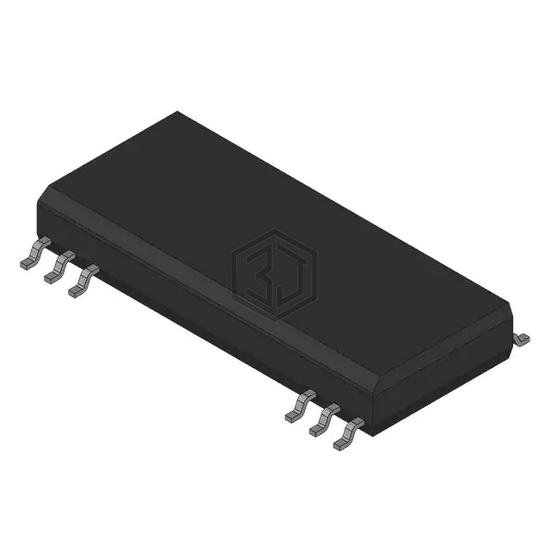

LV5747NTT-TLM-E is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Sanyo. STEP-DOWN SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 42V, package / case 12-TFSOP (0.118", 3.00mm Width).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 42V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6545IBZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 8SOIC | 94% | View |
| LT3845AIFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 92% | View |
| LTC3832-1ES8#PBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST 8SOIC | 89% | View |
| MIC2164YMM | Microchip Technology | IC REG CTRLR BUCK 10MSOP | 89% | View |
| MAX1626ESA+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 8SOIC | 89% | View |
| S-8533A49AFT-TB-U | ABLIC Inc. | IC REG CTRLR BUCK 8TSSOP | 88% | View |
Submit your RFQ for LV5747NTT-TLM-E and get a quote within 24 hours.
