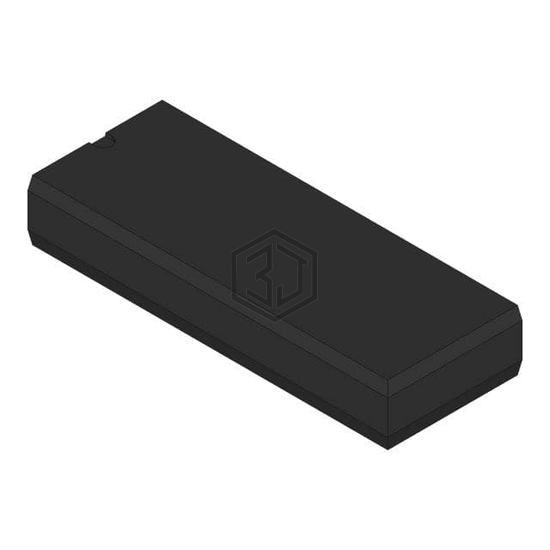

3-PHASE BRUSHLESS MOTOR DRIVER
LB11826-E is a PMIC - Motor Drivers, Controllers manufactured by Sanyo. 3-PHASE BRUSHLESS MOTOR DRIVER. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C (TA), voltage - supply 9.5V ~ 28V, package / case 28-SDIP (0.500", 12.70mm).
In Stock: 209
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | PWM |
| Technology | - |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 2.5A |
| Voltage - Supply | 9.5V ~ 28V |
| Voltage - Load | 9.5V ~ 28V |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) |
| Supplier Device Package | 28-HDIP |
LB11826-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6205N | STMicroelectronics | IC MTR DRV BIPLR 8-52V 20-PWRDIP | 89% | View |
| SMA6823MHLF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 65% | View |
| SIM6891M | Sanken | IPM - HIGH VOLTAGE 3 PHASE MOTOR | 65% | View |
| SMA6823MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 65% | View |
| SMA6853MX LF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 65% | View |
| SMA6823MH | Sanken | IC MOTOR DRVR 13.5V-16.5V 24ZIP | 65% | View |
Submit your RFQ for LB11826-E and get a quote within 24 hours.
