3-PHASE SENSOR LESS MOTOR DRIVER

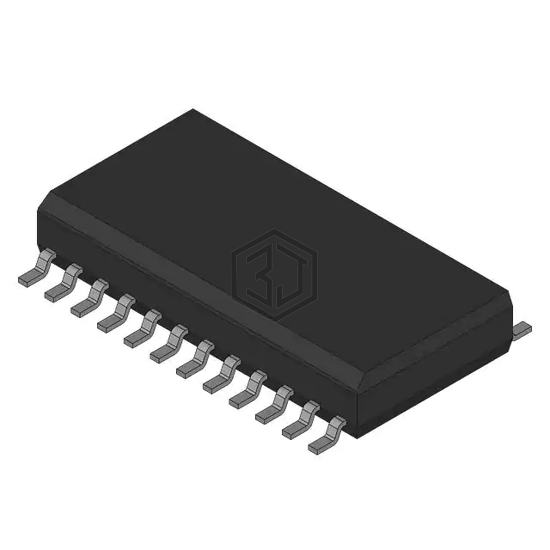

LB11685AV-TLM-H is a PMIC - Motor Drivers, Controllers manufactured by Sanyo. 3-PHASE SENSOR LESS MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 24-LSOP (0.220", 5.60mm Width).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 4.5V ~ 18V |
| Voltage - Load | 4.5V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSOP (0.220", 5.60mm Width) |
| Supplier Device Package | 24-SSOP-J |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV70521MN003G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 94% | View |
| E-L6258 | STMicroelectronics | IC MOTOR DRIVER BIPLR 36POWERSO | 82% | View |
| E-L9935 | STMicroelectronics | IC MTR DRV BIPOLAR 8-24V 20PWRSO | 80% | View |
| DRV8802QPWPRQ1 | Texas Instruments | IC MOTOR DRVR 8.2V-45V 28HTSSOP | 75% | View |
| DRV8802PWP | Texas Instruments | IC MOTOR DRVR 8.2V-45V 28HTSSOP | 75% | View |
| DRV8802PWPR | Texas Instruments | IC MOTOR DRVR 8.2V-45V 28HTSSOP | 75% | View |
Submit your RFQ for LB11685AV-TLM-H and get a quote within 24 hours.
