3-PHASE SENSORLESS MOTOR DRIVER

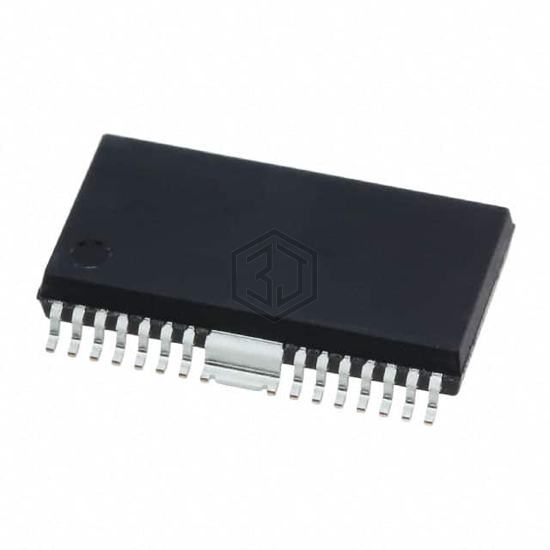

LB11683H-TLM-E is a PMIC - Motor Drivers, Controllers manufactured by Sanyo. 3-PHASE SENSORLESS MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 5.5V ~ 13.8V, package / case 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 5.5V ~ 13.8V |
| Voltage - Load | 5.5V ~ 13.8V |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP-HC |
LB11683H-TLM-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV10970PWP | Texas Instruments | IC MOTOR DRIVER 5V-18V 24HTSSOP | 97% | View |
| DRV8436ERGER | Texas Instruments | INDUSTRIAL STEPPER DRIVER | 95% | View |
| DRV8436PWPR | Texas Instruments | 48-V, 1.5-A BIPOLAR STEPPER MOTO | 95% | View |
| DRV10975ZPWP | Texas Instruments | IC MOTOR DRVR 6.5V-18V 24HTSSOP | 94% | View |
| DRV8823QDCARQ1 | Texas Instruments | IC MTR DRV BIPOLR 8-32V 48HTSSOP | 87% | View |
| A4979GLPTR-T | Allegro MicroSystems | IC MTR DRV BIPOLR 3-5.5V 28TSSOP | 85% | View |
Submit your RFQ for LB11683H-TLM-E and get a quote within 24 hours.
