Sanyo Denki SanMotion Products
STEP, F2 MOTOR, SQ.86, 2 PHASE S

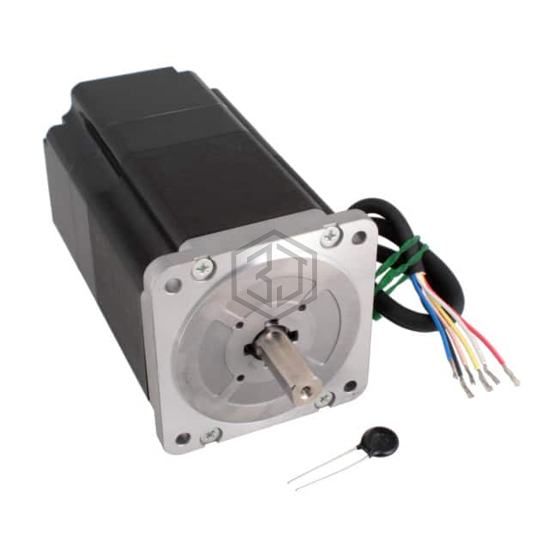

SH2862-52XB12 is a Stepper Motors manufactured by Sanyo Denki SanMotion Products. STEP, F2 MOTOR, SQ.86, 2 PHASE S. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 6 A, size / dimension Square - 3.386" x 3.386" (86.00mm x 86.00mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid, Dual Shaft |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 6 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 906.3 / 6400 |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| NEMA Frame Size | 34 |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.36 Ohms |
| Features | - |
Submit your RFQ for SH2862-52XB12 and get a quote within 24 hours.
