Sanyo Denki SanMotion Products
STEP, F2, SQ.42, 1.8, , , BIPOLA

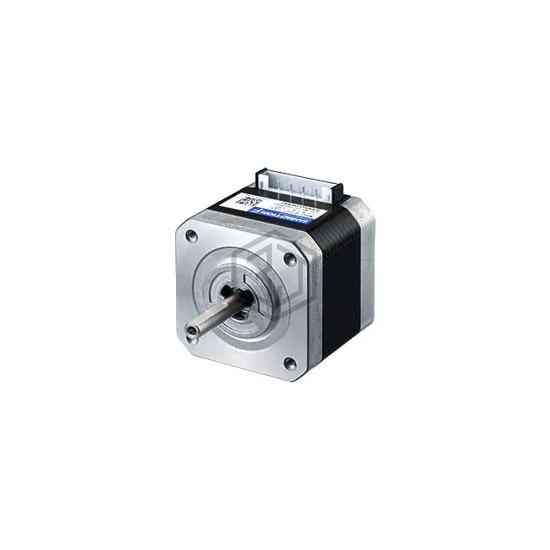

SF2422-10B41 is a Stepper Motors manufactured by Sanyo Denki SanMotion Products. STEP, F2, SQ.42, 1.8, , , BIPOLA. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 1 A, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 1 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 60.89 / 430 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Connector |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 4.6 Ohms |
| Features | - |
Submit your RFQ for SF2422-10B41 and get a quote within 24 hours.
