IC OFFLINE SW FLYBACK TO3PF-7

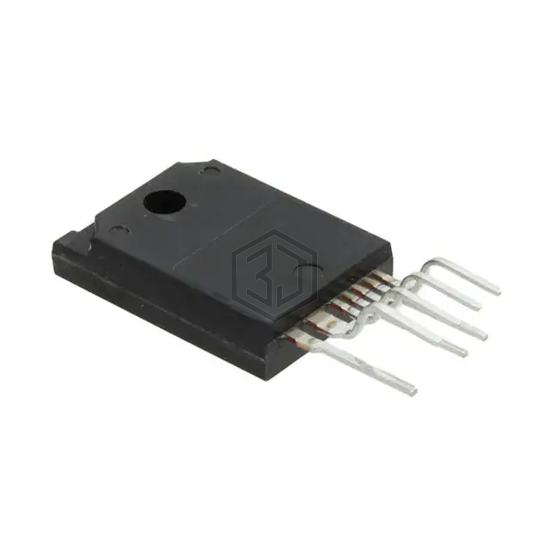

STR-X6769 is a PMIC - AC DC Converters, Offline Switchers manufactured by Sanken. IC OFFLINE SW FLYBACK TO3PF-7. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 125°C (TA), voltage - supply (vcc/vdd) 9.7V ~ 35V, package / case TO-3P-7 Full Pack, Formed Leads.
In Stock: 5,203
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | 310 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 125°C (TA) |
| Package / Case | TO-3P-7 Full Pack, Formed Leads |
| Supplier Device Package | TO-3P |
| Mounting Type | Through Hole |
STR-X6769 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STR-X6769B | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 100% | View |
| STR-X6759F | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 98% | View |
| STR-X6750F | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 98% | View |
| STR-X6756 | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 98% | View |
| STR-X6750B | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 98% | View |
| STR-X6757 | Sanken | IC OFFLINE SWITCH FLYBACK TO3P | 98% | View |
