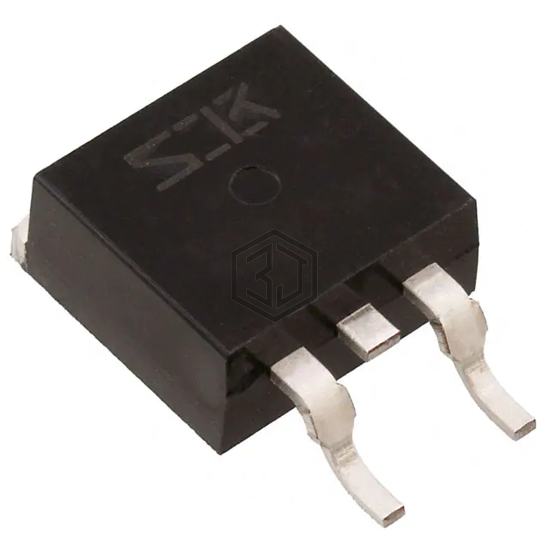

MOSFET N-CH 30V 85A TO263-3
SKI03021 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 30V 85A TO263-3. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 110A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 94.2 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6200 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 135W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Submit your RFQ for SKI03021 and get a quote within 24 hours.
