IC BRIDGE DRIVER PAR SCM33

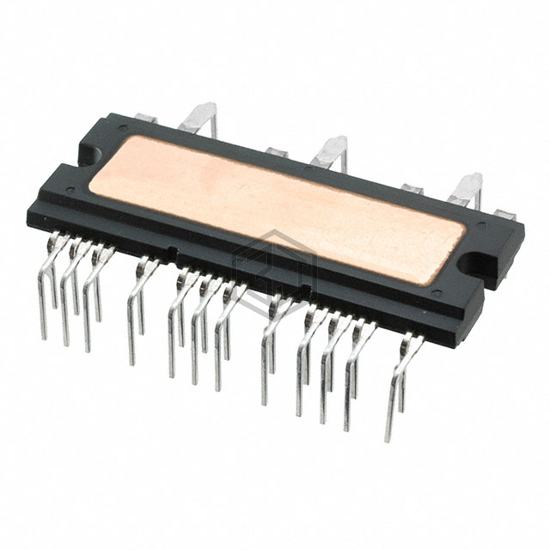

SCM1243MF is a PMIC - Full, Half-Bridge Drivers manufactured by Sanken. IC BRIDGE DRIVER PAR SCM33. Key specifications: mounting type Through Hole, operating temperature 125°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 33-PowerDIP (1.307", 33.20mm) Exposed Pad.
In Stock: 1,591
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 15A |
| Current - Peak Output | 30A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | 125°C (TJ) |
| Features | Auto Restart, Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 33-PowerDIP (1.307", 33.20mm) Exposed Pad |
| Supplier Device Package | 33-PowerDIP LF2552 |
SCM1243MF is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK57FU391A-E | onsemi | IC MOTOR DRIVER 35SIP | 99% | View |
| STK57FU394A-E | onsemi | MOD IPM PFC INVERTER | 99% | View |
| STK621-150A-E | onsemi | IC MOTOR DRIVER | 99% | View |
| STK621-150B-E | onsemi | IC MOTOR DRIVER | 99% | View |
| SCM1241M | Sanken | IC BRIDGE DRIVER PAR SCM33 | 82% | View |
| STK534U363C-E | onsemi | 3 PHASE INVERTER IPM | 79% | View |
Submit your RFQ for SCM1243MF and get a quote within 24 hours.
