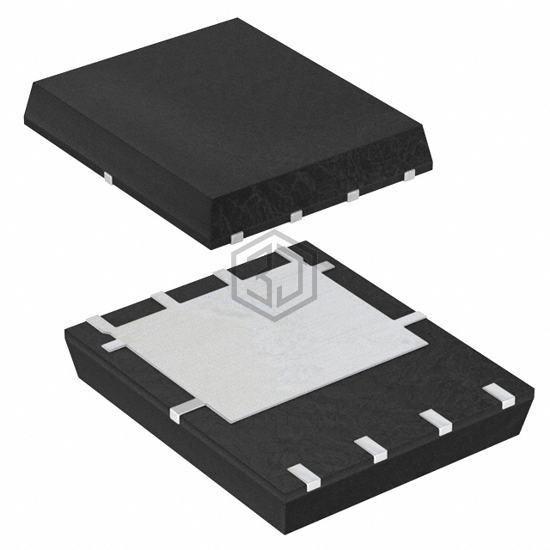

MOSFET N-CH 40V 11A 8DFN
GKI04076 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 40V 11A 8DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.3mOhm @ 23.3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 350µA |
| Gate Charge (Qg) (Max) @ Vgs | 24.9 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1470 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 46W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for GKI04076 and get a quote within 24 hours.
