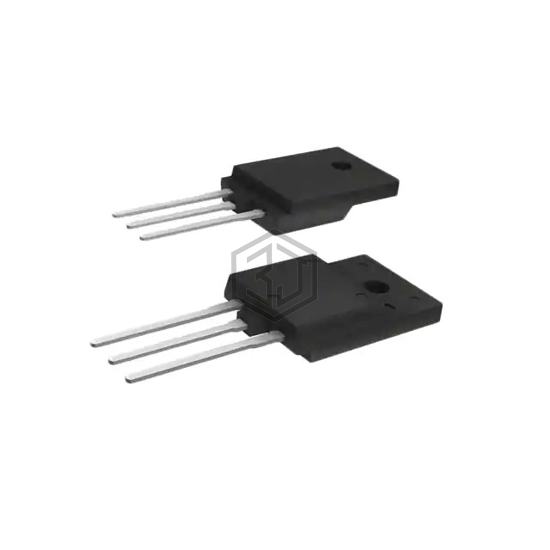

TRANS PNP 140V 10A TO3PF
2SA1909 is a Transistors - Bipolar (BJT) - Single manufactured by Sanken. TRANS PNP 140V 10A TO3PF. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 10 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 3A, 4V |
| Power - Max | 80 W |
| Frequency - Transition | 20MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF |
Submit your RFQ for 2SA1909 and get a quote within 24 hours.
