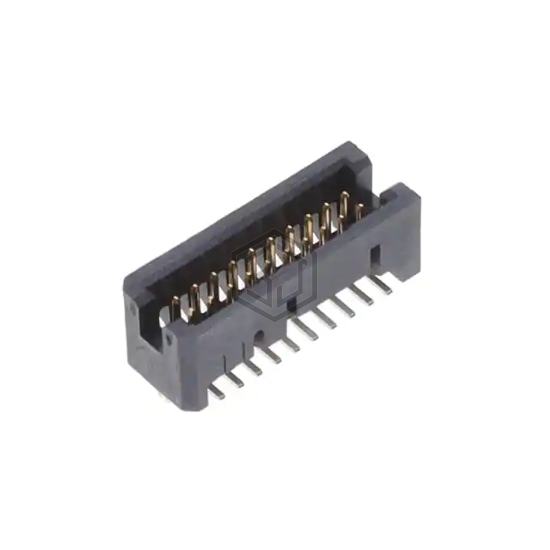

CONN HEADER SMD 20POS 1.27MM
TFML-110-02-L-D-LC-TR is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER SMD 20POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, termination Solder.
In Stock: 442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.134" (3.39mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Lock |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for TFML-110-02-L-D-LC-TR and get a quote within 24 hours.
