.050 X .050 TERMINAL STRIP

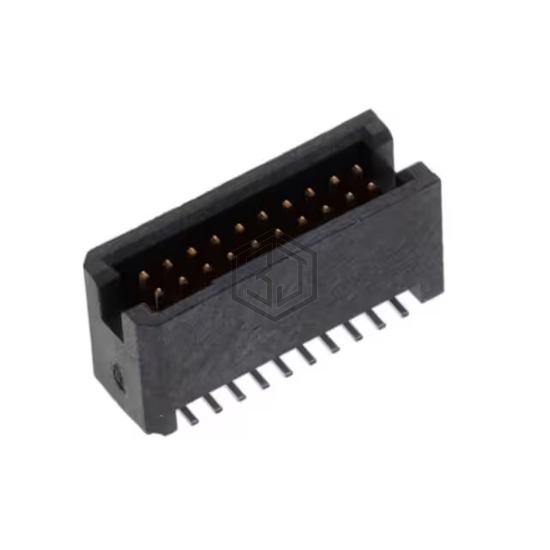

TFC-110-12-F-D is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. .050 X .050 TERMINAL STRIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 275VAC, contact material Phosphor Bronze.
In Stock: 224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.139" (3.53mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.296" (7.52mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3.1A per Contact |
| Voltage Rating | 275VAC |
Submit your RFQ for TFC-110-12-F-D and get a quote within 24 hours.
