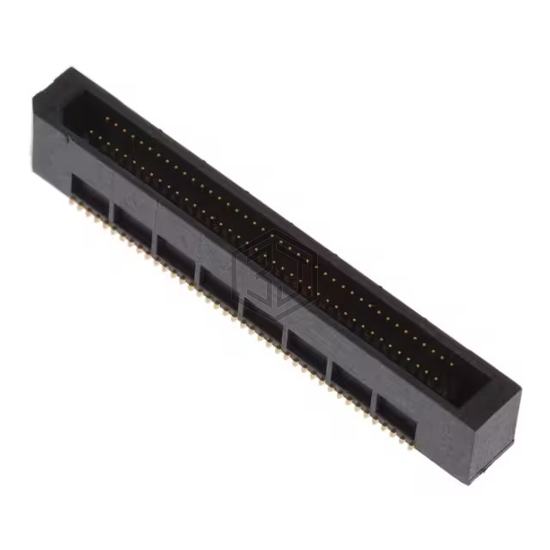

.8MM TIGER EYE MICRO TERMINAL
TEM-140-02-04.0-H-D-A is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. .8MM TIGER EYE MICRO TERMINAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, current rating (amps) 2.9A per Contact.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.063" (1.60mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.260" (6.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 2.9A per Contact |
| Voltage Rating | - |
Submit your RFQ for TEM-140-02-04.0-H-D-A and get a quote within 24 hours.
