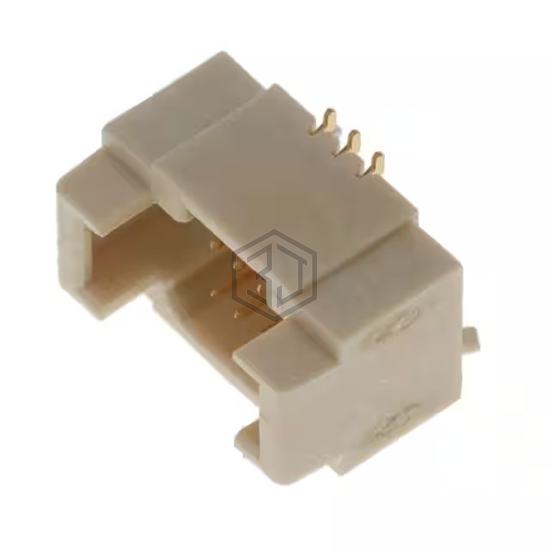

T1M 1MM TERMINAL STRIP
T1M-03-GF-DV-K is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. T1M 1MM TERMINAL STRIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C, voltage rating 250VAC, 353VDC, contact material Phosphor Bronze.
In Stock: 179
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.077" (1.96mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.268" (6.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3.3A per Contact |
| Voltage Rating | 250VAC, 353VDC |
Submit your RFQ for T1M-03-GF-DV-K and get a quote within 24 hours.
