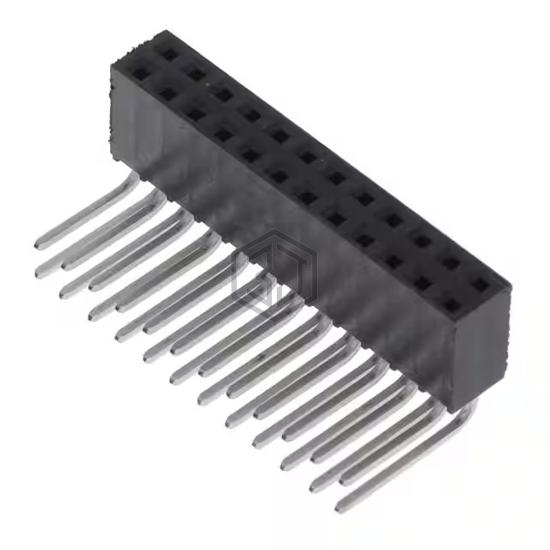

CONN RCPT 24POS 0.1 GOLD PCB R/A
SSQ-112-23-S-D-RA is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN RCPT 24POS 0.1 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, voltage rating 465VAC, 655VDC, termination Solder.
In Stock: 997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.195" (4.95mm) |
| Contact Length - Post | 0.300" (7.62mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 465VAC, 655VDC |
Submit your RFQ for SSQ-112-23-S-D-RA and get a quote within 24 hours.
