CONN RCPT .100" 50POS DUAL VERT

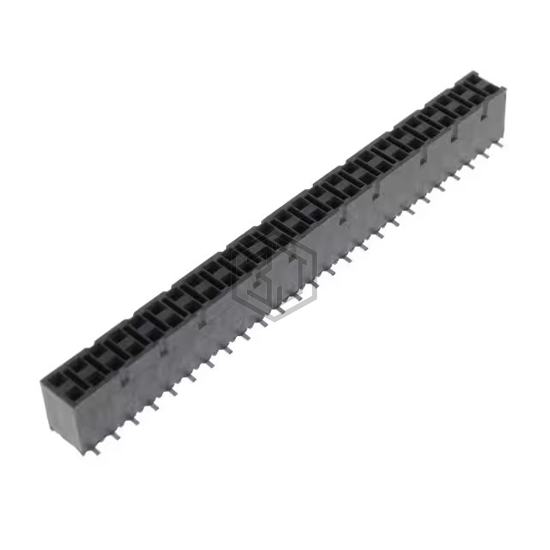

SSM-125-S-DV-LC is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN RCPT .100" 50POS DUAL VERT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 405VAC, 572VDC, current rating (amps) 5.2A per Contact.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Pass Through |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.290" (7.37mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Lock |
| Current Rating (Amps) | 5.2A per Contact |
| Voltage Rating | 405VAC, 572VDC |
Submit your RFQ for SSM-125-S-DV-LC and get a quote within 24 hours.
