HEADER

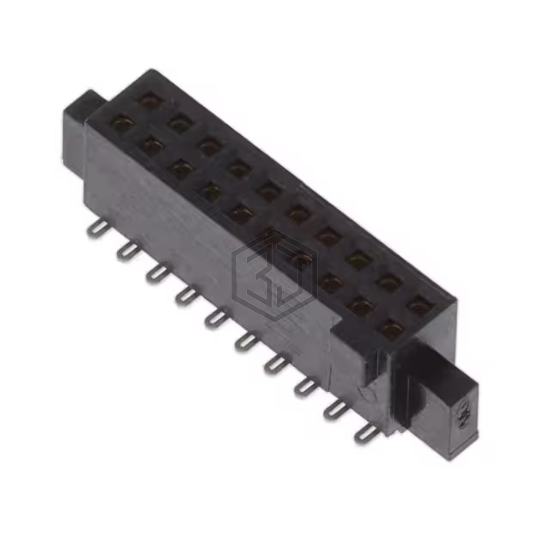

SFM-110-02-L-D-K is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. HEADER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 250VAC, current rating (amps) 3.2A per Contact.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.185" (4.70mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 3.2A per Contact |
| Voltage Rating | 250VAC |
Submit your RFQ for SFM-110-02-L-D-K and get a quote within 24 hours.
