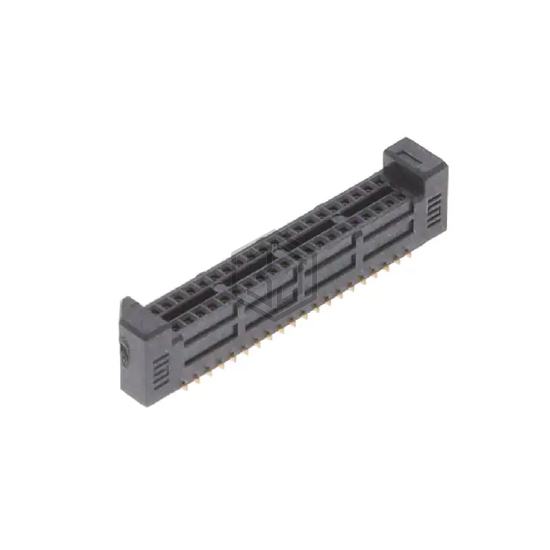

.8MM TIGER EYE MICRO SOCKET
SEM-120-02-03.0-H-D-A is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. .8MM TIGER EYE MICRO SOCKET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, current rating (amps) 2.6A per Contact, termination Solder.
In Stock: 206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.125" (3.18mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 6mm, 7mm, 10mm |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 2.6A per Contact |
| Voltage Rating | - |
Submit your RFQ for SEM-120-02-03.0-H-D-A and get a quote within 24 hours.
