CONN HDR 156POS SMD GOLD

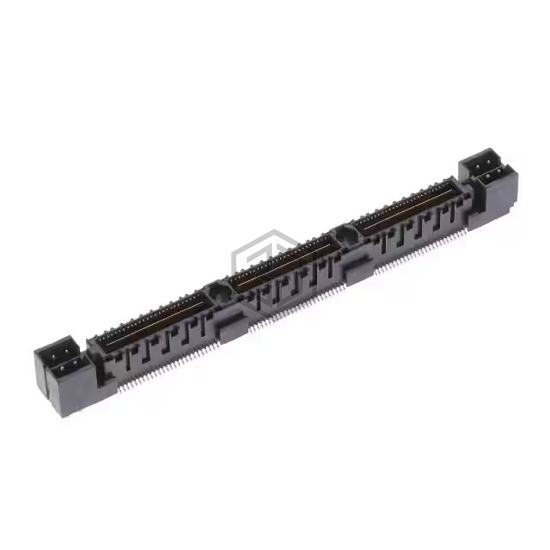

QMS-078-06.75-L-D-PT4 is a Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) manufactured by Samtec Inc.. CONN HDR 156POS SMD GOLD. Key specifications: mounting type Surface Mount, Through Hole, number of positions 160 (156 + 4 Power), connector type Header, Outer Shroud Contacts, pitch 0.025" (0.64mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Outer Shroud Contacts |
| Number of Positions | 160 (156 + 4 Power) |
| Pitch | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount, Through Hole |
| Features | Board Guide, Ground Bus (Plane), Power Pins (8) |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Mated Stacking Heights | 11mm, 13mm |
| Height Above Board | 0.250" (6.35mm) |
Submit your RFQ for QMS-078-06.75-L-D-PT4 and get a quote within 24 hours.
