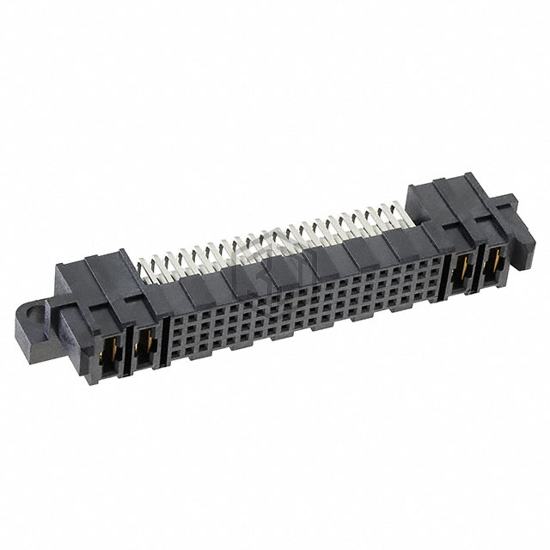

CONN RCPT 84POS GOLD PCB R/A
MPSC-02-80-02-01-01-L-RA-SD is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN RCPT 84POS GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, termination Solder, number of positions 84 (80 + 4 Power).
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 84 (80 + 4 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | - |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.400" (10.16mm) |
| Contact Length - Post | 0.107" (2.71mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mounting Flange, Mounting Hardware |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for MPSC-02-80-02-01-01-L-RA-SD and get a quote within 24 hours.
