CONN RCPT 20P 0.079 TIN SMD R/A

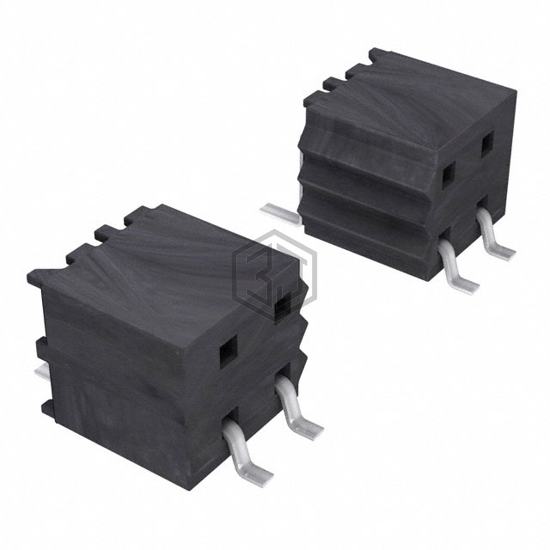

MMS-110-02-T-DH-LC is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN RCPT 20P 0.079 TIN SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, current rating (amps) 3.9A per Contact, termination Solder.
In Stock: 6,552
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Lock |
| Current Rating (Amps) | 3.9A per Contact |
| Voltage Rating | - |
Submit your RFQ for MMS-110-02-T-DH-LC and get a quote within 24 hours.
