1MM MICRO STRIPS

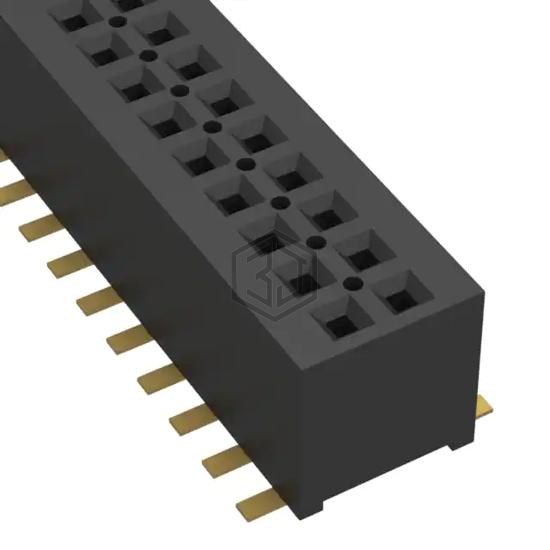

MLE-135-01-G-DV-K is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. 1MM MICRO STRIPS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 310VAC, current rating (amps) 2.9A per Contact.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 70 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.130" (3.30mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 2.9A per Contact |
| Voltage Rating | 310VAC |
Submit your RFQ for MLE-135-01-G-DV-K and get a quote within 24 hours.
