CONN HEADER R/A 14POS 2MM

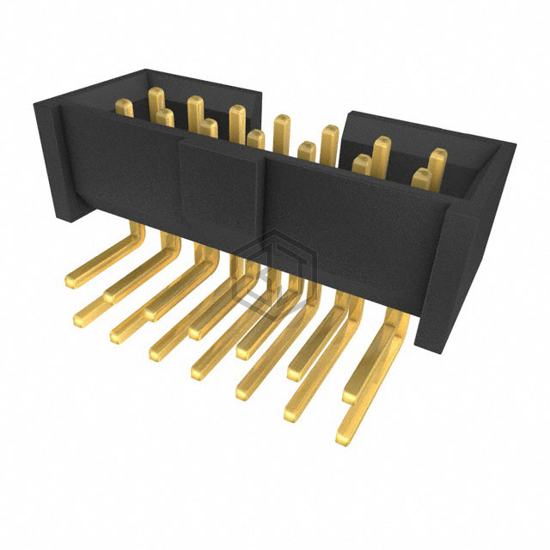

LTMM-107-02-G-D-RA is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER R/A 14POS 2MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, termination Solder.
In Stock: 496
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.120" (3.05mm) |
| Contact Length - Post | 0.090" (2.29mm) |
| Overall Contact Length | - |
| Insulation Height | 0.237" (6.03mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for LTMM-107-02-G-D-RA and get a quote within 24 hours.
