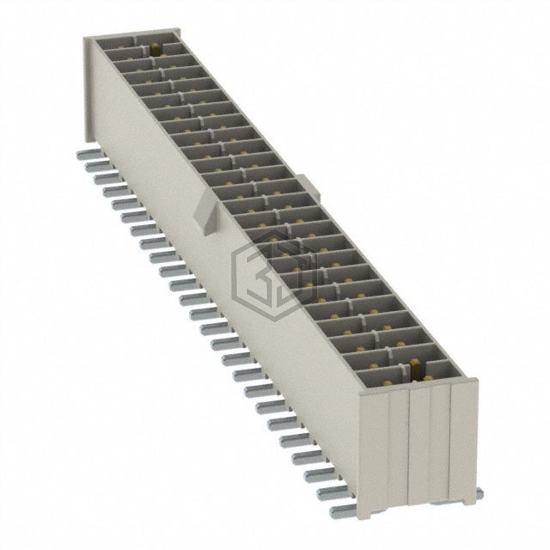

CONN HEADER SMD 50POS 2.54MM
IPL1-125-02-L-D-K is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER SMD 50POS 2.54MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 675VAC, 954VDC, contact material Phosphor Bronze.
In Stock: 370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.215" (5.46mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.320" (8.13mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 675VAC, 954VDC |
Submit your RFQ for IPL1-125-02-L-D-K and get a quote within 24 hours.
