CONN HEADER SMD 20POS 4.20MM

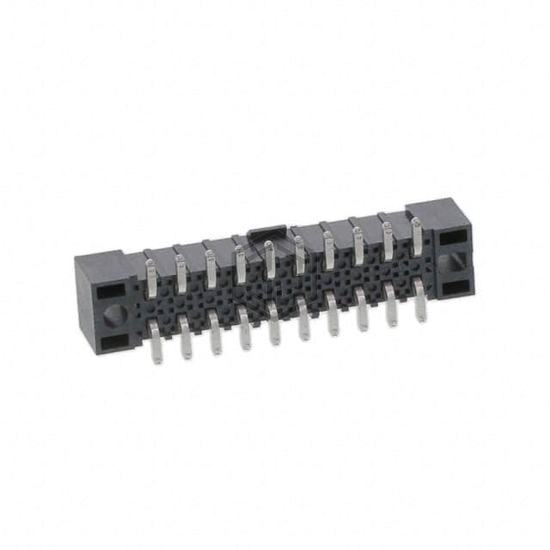

IPBT-110-H2-T-D-GP is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. CONN HEADER SMD 20POS 4.20MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage rating 400VAC, 565VDC, contact material Copper Alloy.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.260" (6.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.380" (9.65mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Mating Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 400VAC, 565VDC |
Submit your RFQ for IPBT-110-H2-T-D-GP and get a quote within 24 hours.
