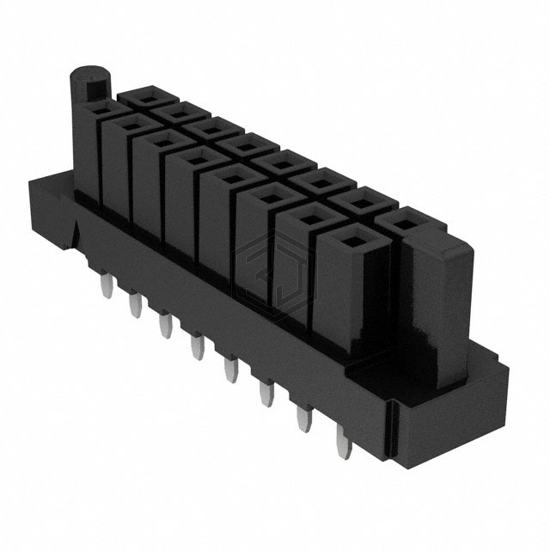

CONN HDR 16POS 0.165 TIN PCB
IPBS-108-01-T-D-GP is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Samtec Inc.. CONN HDR 16POS 0.165 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 400VAC, 565VDC, termination Solder.
In Stock: 714
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.480" (12.20mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Guide Pin |
| Current Rating (Amps) | - |
| Voltage Rating | 400VAC, 565VDC |
