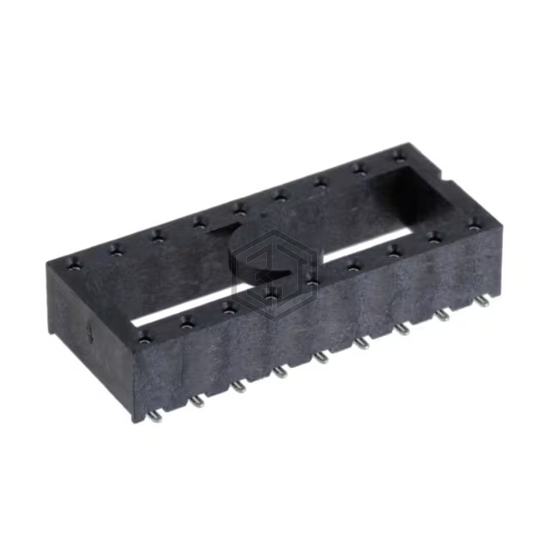

CONN IC DIP SOCKET 18POS TIN
ICF-318-T-O is a Sockets for ICs, Transistors manufactured by Samtec Inc.. CONN IC DIP SOCKET 18POS TIN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Surface Mount |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for ICF-318-T-O and get a quote within 24 hours.
