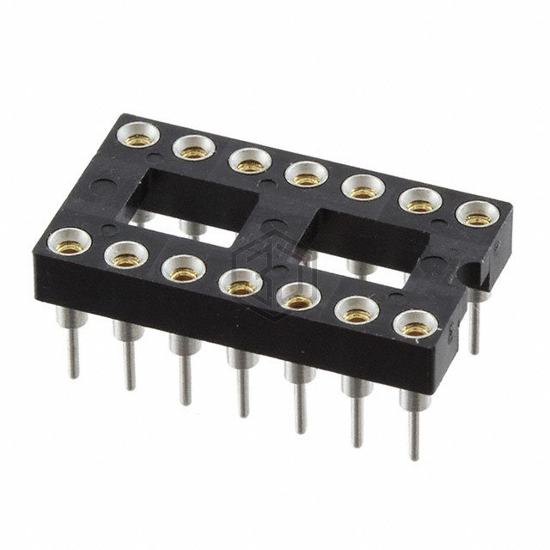

CONN IC DIP SOCKET 14POS GOLD
ICA-314-SGT is a Sockets for ICs, Transistors manufactured by Samtec Inc.. CONN IC DIP SOCKET 14POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Polyester, Glass Filled, termination Solder.
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Material - Post | Brass |
| Housing Material | Polyester, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for ICA-314-SGT and get a quote within 24 hours.
