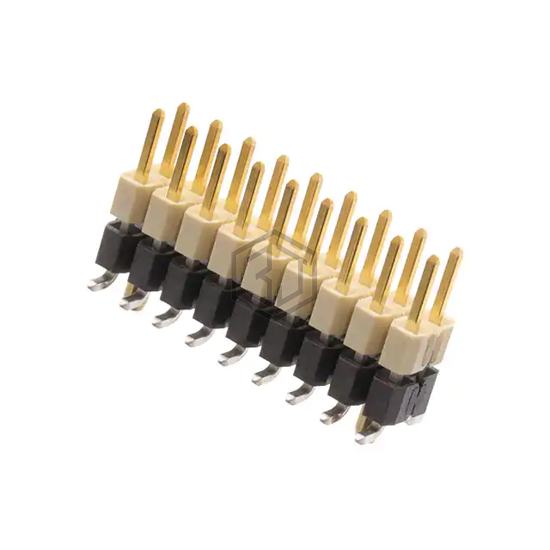

CONN HDR 18POS 0.1 STACK SMD
HW-09-08-L-D-285-SM-A is a Rectangular Connectors - Board Spacers, Stackers (Board to Board) manufactured by Samtec Inc.. CONN HDR 18POS 0.1 STACK SMD. Key specifications: mounting type Surface Mount, color Black, termination Solder, number of positions 18.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 18 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall Pin | 0.465" (11.811mm) |
| Length - Post (Mating) | 0.180" (4.572mm) |
| Length - Stack Height | 0.285" (7.239mm) |
| Length - Tail | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 10.0µin (0.25µm) |
| Color | Black |
Submit your RFQ for HW-09-08-L-D-285-SM-A and get a quote within 24 hours.
