.100" HIGH-TEMP SINGLE ROW SCREW

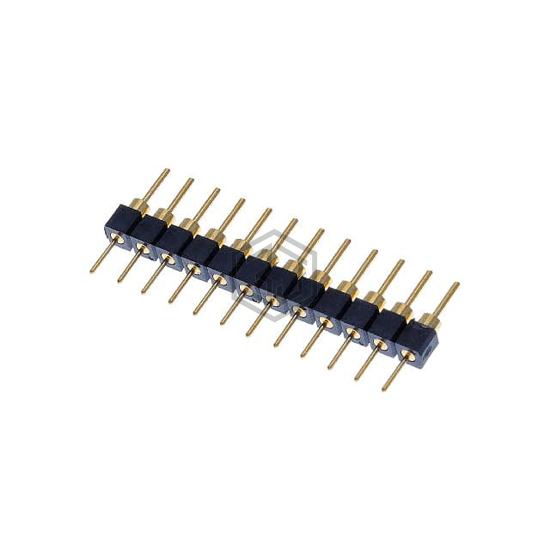

HTS-112-G-A is a Rectangular Connectors - Headers, Male Pins manufactured by Samtec Inc.. .100" HIGH-TEMP SINGLE ROW SCREW. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, termination Solder.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.166" (4.22mm) |
| Contact Length - Post | 0.156" (3.96mm) |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for HTS-112-G-A and get a quote within 24 hours.
