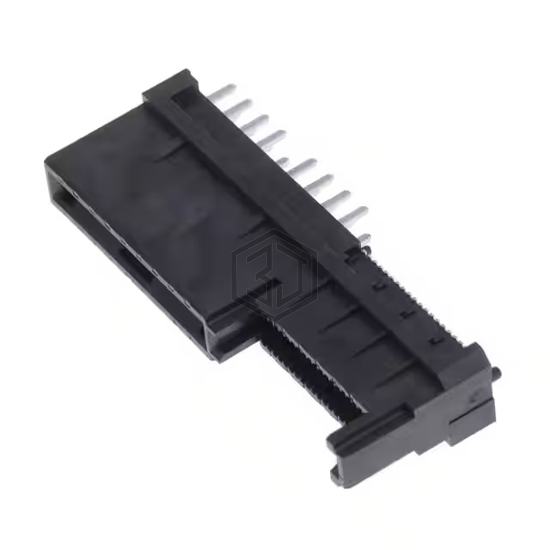

0.80 MM HIGH-SPEED EDGE CARD
HSEC8-120-01-S-PV-4-2 is a Card Edge Connectors - Edgeboard Connectors manufactured by Samtec Inc.. 0.80 MM HIGH-SPEED EDGE CARD. Key specifications: mounting type Surface Mount, Through Hole, operating temperature -55°C ~ 125°C, color Black, contact material Beryllium Copper.
In Stock: 135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 20; 2; 2 |
| Number of Positions | 44 (40 + 4 Power) |
| Card Thickness | 0.093" (2.36mm) |
| Number of Rows | 2 |
| Pitch | 0.031" (0.80mm) |
| Read Out | Dual |
| Features | Board Guide |
| Mounting Type | Surface Mount, Through Hole |
| Termination | Solder |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for HSEC8-120-01-S-PV-4-2 and get a quote within 24 hours.
